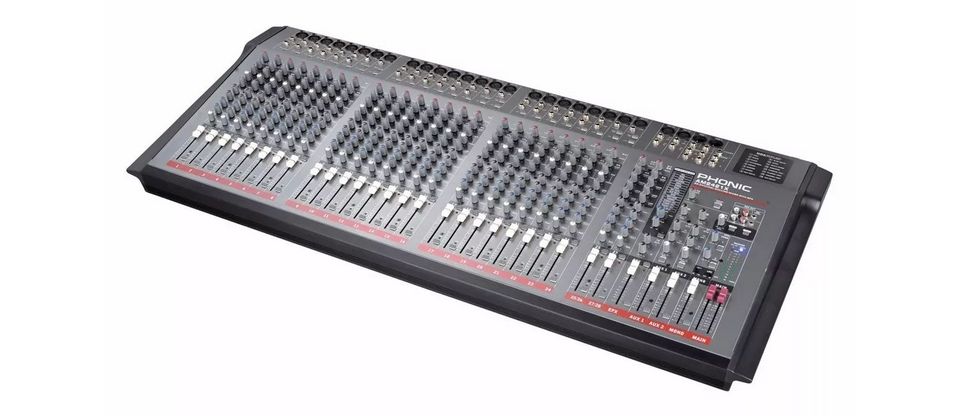

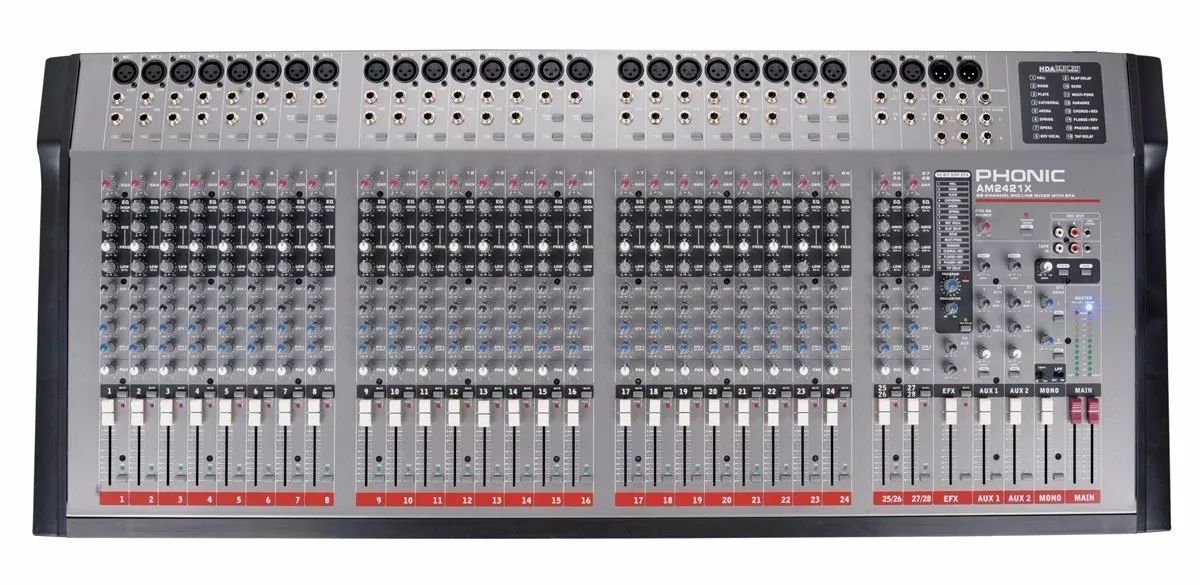

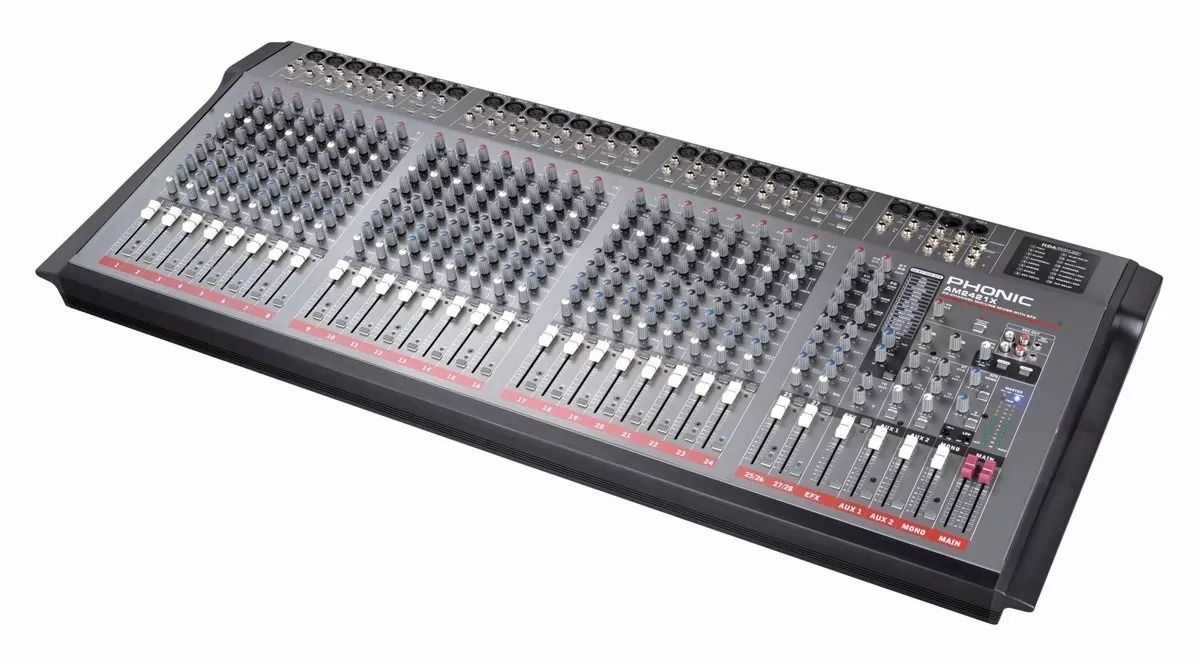

The AM X mixers are easy-to-use mixing consoles that provide all the features you need for the project studio and live sound reinforcement.
With numerous ultra-quiet Mic preamps with high headroom and phantom power, and two stereo line channels. All mono channels feature
inserts and lowcut switches. A 3-band EQ with swept-mid on mono channels and 4-band EQ on stereo channels gives you greater control over
your mix. Four Aux sends and two stereo Aux returns can be used to connect a variety of outboard signal processors or to create special mixes
to send to the performers'monitor speakers. An onboard 24-bit stereo digital effects processor features 16 programs plus one main parameter
control, tap control and foot switch jacks. Output is through XLR or 1/4" phone jacks and is selectable as stereo or mono output, with mono
doubling as a subwoofer output. The added feature of mini stereo input/output makes this mixer perfect for anyone connecting MP3, MD or
computer audio or recording devices. The AM X mixers are ideal for houses of worship, small to medium-sized halls and project studios.
Multiple low-noise mic preamps
Mono channels have 3-band EQ with swept mid-range, 75Hz (18 dB/ octave) low-cut filter, inserts and phantom power
Two stereo channels with 4-band EQ
4 AUX sends, AUX 1 & 2 with XLR and 1/4” phone output jacks
32/40-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch jacks
2 stereo AUX returns with effect to monitor
PAD on 4 mono channels to handle difficult signals
Polarity reverse switch on two channels
Main Stereo and Mono output with XLR and 1/4” phone jacks
Mono output with variable low pass filter for subwoofer
Tape input can be routed to AUX 1 and AUX 2
Record output with trim control for level matching
Mini stereo I/O for MD, MP3 player/recorder
Built-in switching power supply with universal connector, 100-240VAC 50/60Hz
