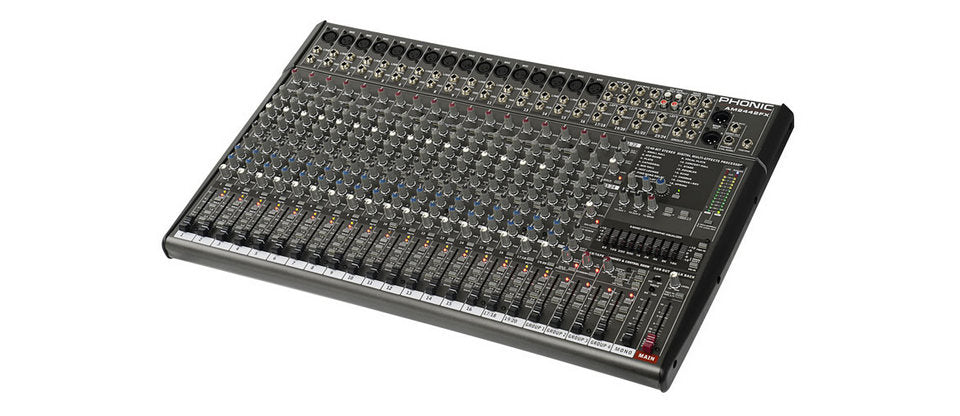

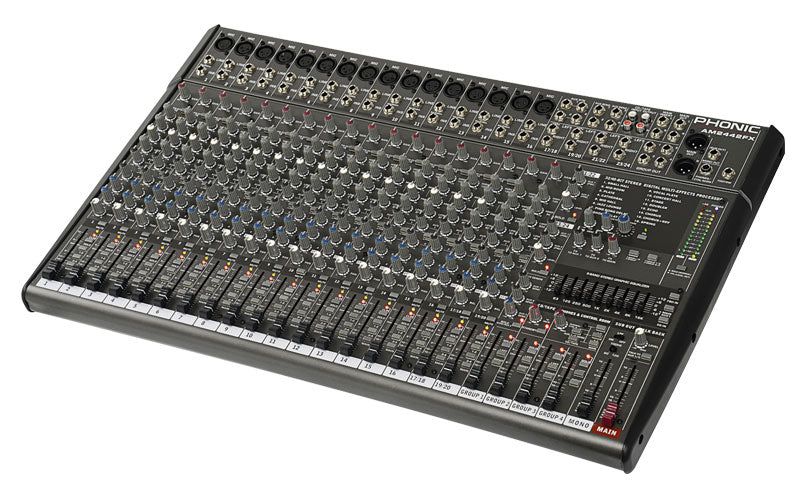

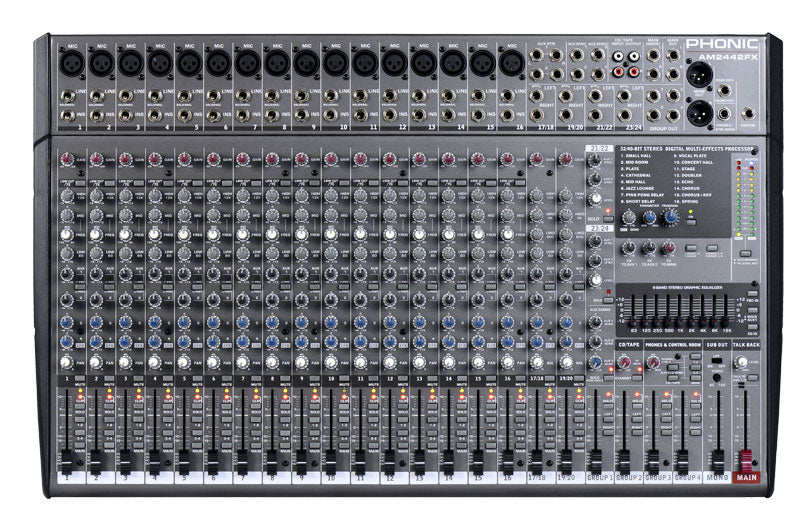

Phonic’s AM2442FX mixers are reliable and versatile with 16 mono mic/line and 2 stereo line inputs. Ultra low-noise preamps ensure high quality sound when used in project studios or in sound reinforcement. The 3-band EQ on mono channels and 4-band EQ on
stereo gives you total control over your mix. Each model offers a high volume headphone output with independent level control. The AM series
makes monitoring the mix even easier with dual 12-segment LED level meters and stereo control room outputs on select models. Both models
also feature a 32/40-bit multi-effect processor with 100 preset programs as well as tap delay effects and test tones. Affordable and easily
manageable, these AM models provide all the features that are important to you.
stereo gives you total control over your mix. Each model offers a high volume headphone output with independent level control. The AM series
makes monitoring the mix even easier with dual 12-segment LED level meters and stereo control room outputs on select models. Both models
also feature a 32/40-bit multi-effect processor with 100 preset programs as well as tap delay effects and test tones. Affordable and easily
manageable, these AM models provide all the features that are important to you.
- Inputs: 16 mic/line, 4 Stereo
- 40-bit digital stereo multi-effect processor with 16 programs
- 9-band stereo graphic EQ
- 2 stereo input channels with 4-band EQ
- 2 additional stereo input channels with level and prefader AUX facilities
- 3-band EQ plus switchable low-cut filter on all mono channels
- Inserts on each mono channel and main mix
- 4 subgroups and additional mono output
- 4 AUX sends for first 20 channels
- Clip indication and gain level set LEDs plus mute switches for each channel
- Solo-In-Place and Pre-Fader-Listen functions
- Full-featured talkback section
- Standby switch mutes all mic channels during breaks
- CD/tape inputs for playing break music

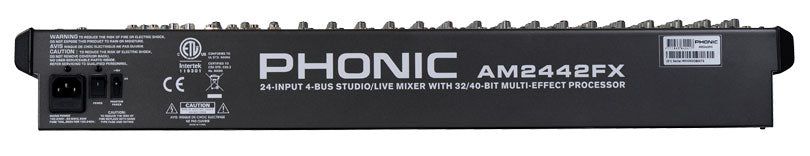

- Internal switching power supply with universal connector, 100-240V, 50/60Hz
