Introducing e/MERGE.
e/MERGE is about change, and change in the e-drum market has been way overdue. When we looked closely at every aspect of the current e-drumming experience with KORG, together we knew we could make a dramatic difference. And that difference begins with the all new e/MERGE module.
Simple yet elegant in design, the e/MERGE MDL1 module features a full library of high definition, natural, organic and minimally processed acoustic Pearl drums. We then added the very best electronic, world, orchestral and specialty percussion sounds from KORG’s vast library of pristine quality samples. But, the module is only part of the change.
There are three key elements that separate e/MERGE from anything that has come before. The all new MDL1 e/MERGE Module, KORG’s amazing Wave Trigger Technology and Pearl’s acoustic-like PUREtouch Electronic Pads all combine to create an exceptional e-drumming experience.
Module
The all new acoustic library for the MDL1 was recorded in one of the world’s most respected recording studios in historic Music City USA, Nashville, Tennessee. Both current and vintage instruments in a full variety of sizes were chosen and sampled. You will recognize some familiar tones in the style of several iconic Pearl artists, some specific genres, decades, and historic songs and styles from the past to the present. Customize sets and save your presets to the library, choose from over 35 different onboard effects, record your performances for hours on end, or just lay into it and play!
The e/MERGE Module is not about useless bells and whistles. It's about simplicity and performance. With eight assignable outs, two master outs, headphone outs and an auxiliary in, the MDL1 easily handles all your live performance and recording needs. But one of the most exciting features of the e/MERGE module is the Ambience Slider. Taken from a mix of the room and overhead mics during the recording process, the Ambience Slider allows you to instantly add color, natural room reverb and live vibe to any acoustic set. The e/MERGE Module hosts feature upon feature designed to make your playing experience unique. If you love to play drums, this module... this e-drum set is for you.

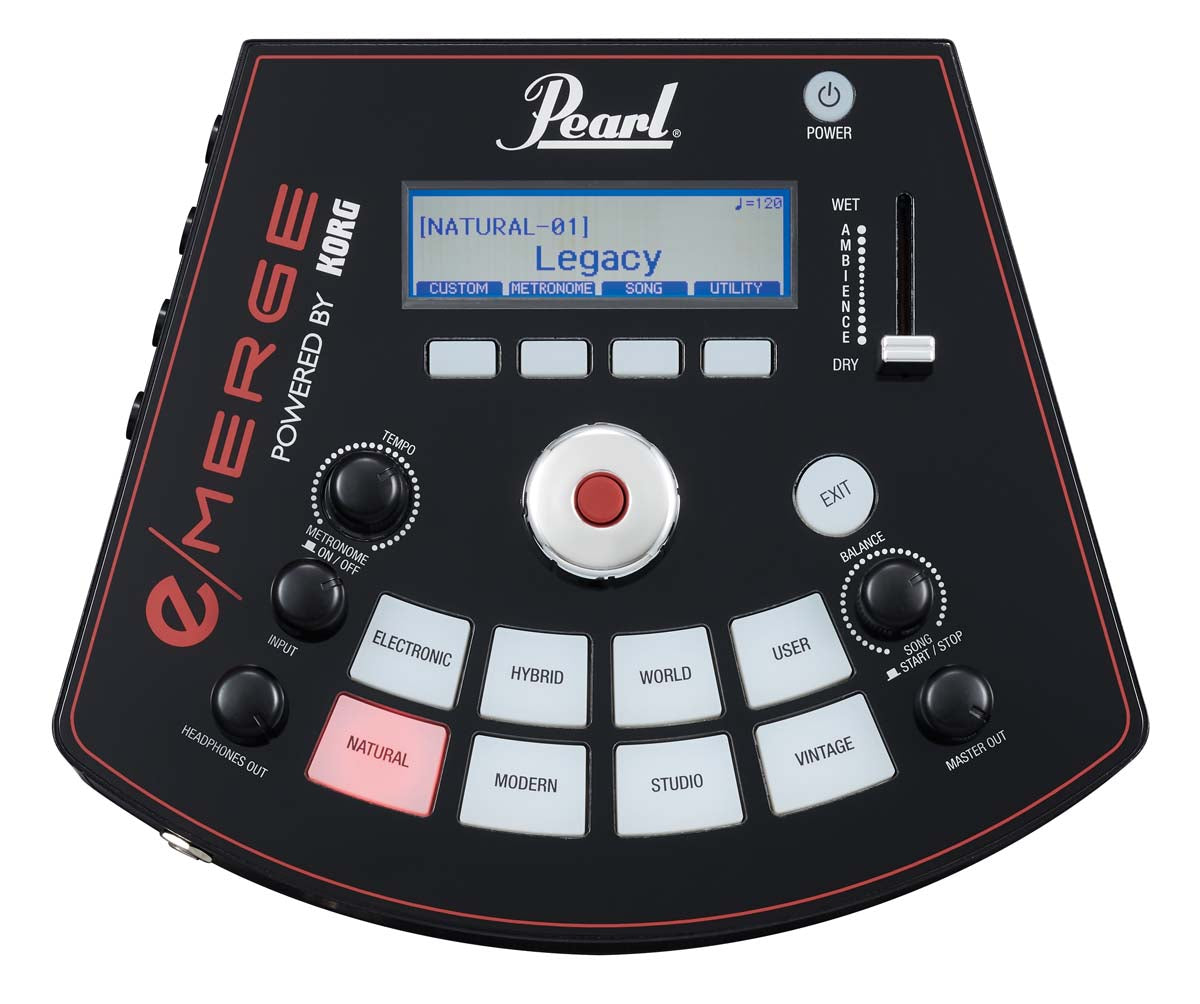

MDL-1 MODULE
Sound Generator: 2 CPU (4 core + 2 core)
Polyphony: 128 voices
Voices: 700 HD Voice Sound Library
Drum Kit: 35 HD Preset Kits
36 Effects
Song Recording Type: 44.1Hz, 16-Bit WAV
Song Recording Time: Approximately 12 hours
Tempo: BPM 30-300
Beat: 1/2 - 24/2, 1/4 - 24/4, 1/8-24/8, 1/8T - 24/8T, 1/16 - 24/16 (T=Triplet)
10 Click Voices
Controllers: Knobs and Ambient Slider Control
Display: 3.25" x 1" Graphic LCD

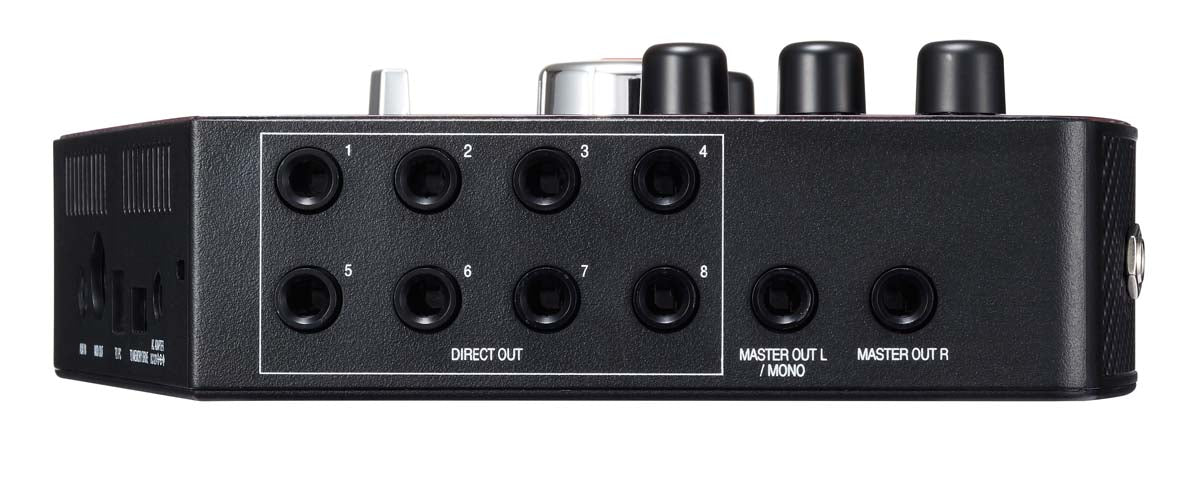

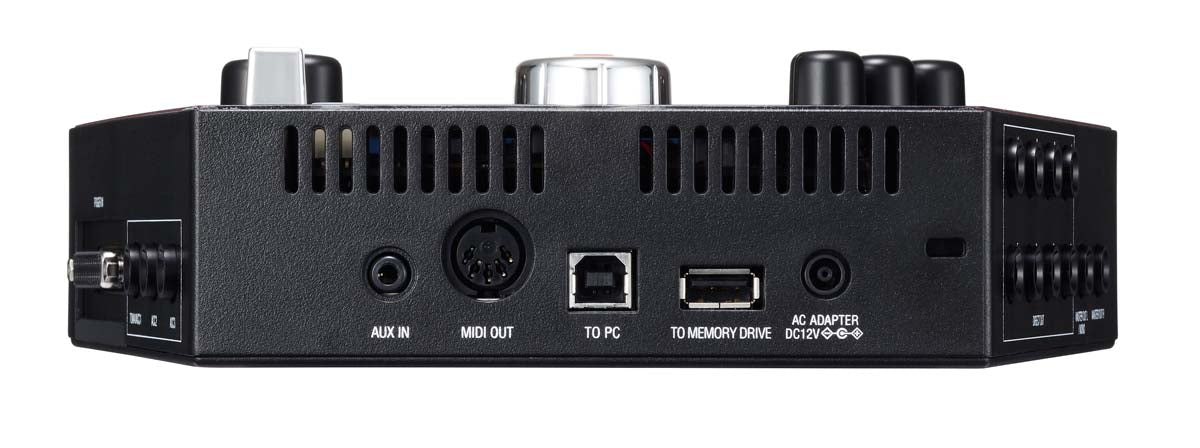

Master Out L/Mono & R
8 Direct Outs
Headphone Out
Aux In TRS Mini

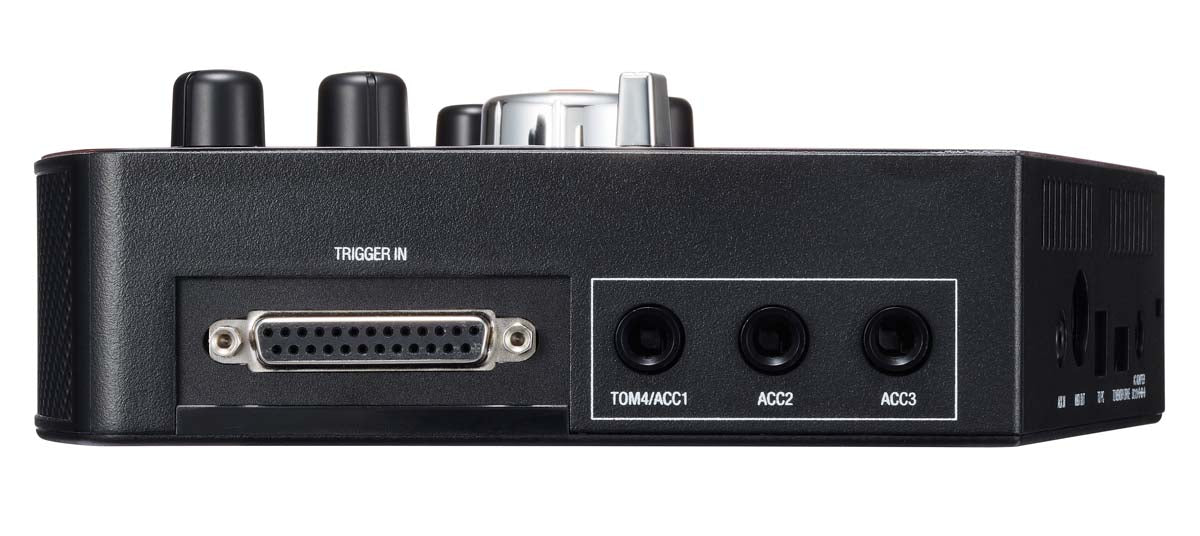

Main Trigger Inputs (DB-25 Connector)
Accessory Inputs (3)
USB to PC Port (transport USB audio & MIDI data)
USB-A (for WAV files and Settings data)
MIDI Output
Power Supply: 120-240v, 50-60 Hz, Switching Power Supply
2.2 lbs., 9" W x 7.5" D x 2" H
Effects: Basic Comp, Attack Comp, Overdrive 1, Overdrive 2, Tube Drive, Radio Crunch, Distortion, Rich Hall, Plate, Reverb, Small Room, Early Reflections, Chorus, Short Delay Chorus, Slow Flanger, Fast Flanger, Slow Phaser, Fast Phaser, Ring Mod 1, Ring Mod 2, Sync Delay 1, Sync Delay 2, Sync Delay 3, Sync Delay LR 1, Sync Delay LR 2, Sync Delay LR 3, Short Delay, Short Delay LR, Mod Delay, Mod Delay LR, Tape Echo, Radio Filter LP, Radio Filter HP, Radio Filter BP, Decimator, Lo-Fi Wah and Auto Wah.
